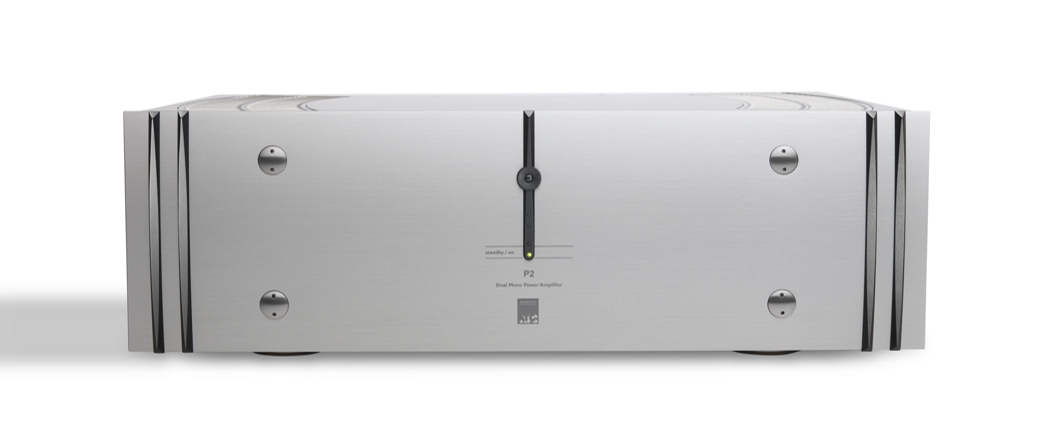

P2 – Dual-Mono Power Amplifier

对不起,此内容只适用于美式英文

(English)





Max Continuous Output Power: >300W (1% THD, 8 ohms, both channels driven)
Input Sensitivity: 2V (ref. 150W out)
Frequency Response: <2Hz – >400kHz (-3dB)
S+N/N Ratio: >115dB (ref 150W, IEC ‘A’)
Crosstalk : >100dB (10Hz – 20kHz)
THD: <0.002% / -95dB (8 ohms, 1kHz, 1dB below full power)

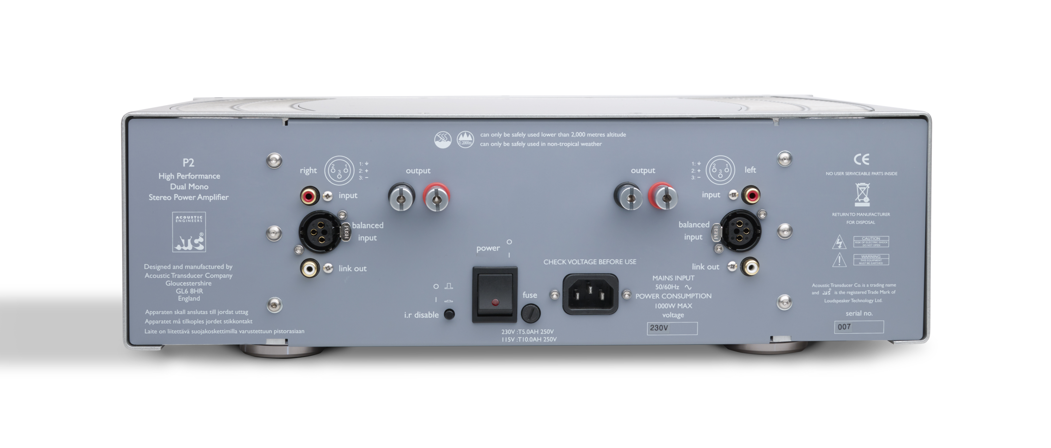

Analogue Line Inputs: 1 x stereo pair female XLR (balanced), 1 x stereo pair RCA/Phono (unbalanced)
Output ‘Link’: 1 x stereo pair RCA/Phono (unbalanced)

Dimensions: 142 x 453 x 338mm / 5.6 x 17.8 x 13.3 inches (H x W x D inc. terminals)
Weight: 23.35kg / 51.37lbs
